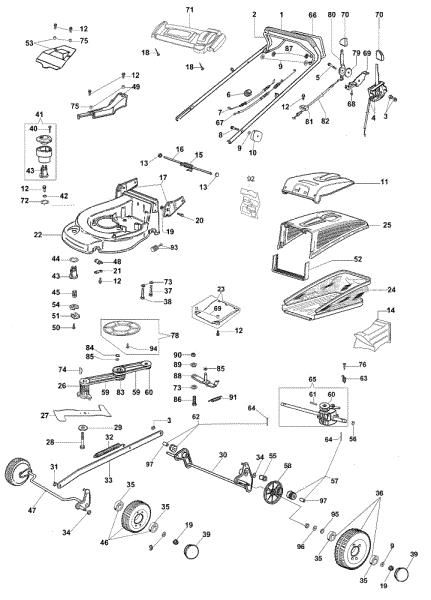

Illustrated parts list (From June 2007) MAX 53 VBX Plus-Cut Lawnmower

Illustrated parts list (From June 2007) MAX 53 VBX Plus-Cut Lawnmower

Mowers MAX 53 VBX Plus-Cut Lawnmower Illustrated parts list (From June 2007) Brand Oleo-Mac
Blagovna znamka: OLEOMAC
In case of spare parts order of MAX 53 VBX Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
In case of spare parts order of MAX 53 VBX Plus-Cut Lawnmower brand Oleo-Mac- to allow our staff to send you the correct spare parts- enter the year of the machine and- if available- its serial number on the final page of the trolley in the Miscellaneous notes field./p
*
*
*

1 Handlebar

Spare Part Handlebar Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€69.94 z DDV

2 Brake lever

Spare Part Brake lever Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€34.39 z DDV

3 Nut

Spare Part Nut Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€0.88 z DDV

4 Complete throttle

Spare Part Complete throttle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€33.23 z DDV

5 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€7.76 z DDV

6 Band

Spare Part Band Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€7.86 z DDV

7 Engine break cable

Spare Part Engine break cable Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€33.72 z DDV

8 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€5.08 z DDV

9 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4.98 z DDV

10 Knob

Spare Part Knob Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€16.47 z DDV

11 Shutter

Spare Part Shutter Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€37.24 z DDV

12 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac
€2.29 z DDV

13 Clamp

Spare Part Clamp Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3.71 z DDV

14 Mulching cap

Spare Part Mulching cap Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€59.23 z DDV

15 Spring

Spare Part Spring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€7.91 z DDV

16 Deflector axle

Spare Part Deflector axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€11.37 z DDV

17 Support set

Spare Part Support set Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€57.67 z DDV

18 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€0.54 z DDV

20 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€5.12 z DDV

21 Plate

Spare Part Plate Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€7.42 z DDV

22 Deck

Spare Part Deck Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€638.35 z DDV

23 Cover

Spare Part Cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€23.47 z DDV

24 Grassbag

Spare Part Grassbag Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€125.09 z DDV

25 Frame

Spare Part Frame Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€69.57 z DDV

26 Hub Ø22,2mm BT5-052-01/09

Spare Part Hub Ø22-2mm BT5-052-01/09 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€37.77 z DDV

27 Mulching blade 53

Spare Part Mulching blade 53 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€50.46 z DDV

28 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€14.44 z DDV

29 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€9.71 z DDV

30 Compl. rear axle

Spare Part Compl. rear axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€129.66 z DDV

31 Retainer washer

Spare Part Retainer washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€10.93 z DDV

32 Spring

Spare Part Spring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€25.62 z DDV

33 Rod

Spare Part Rod Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€53.76 z DDV

34 Ring

Spare Part Ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4.93 z DDV

35 Bearing

Spare Part Bearing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 8
€32.62 z DDV

36 Wheel

Spare Part Wheel Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€101.04 z DDV

37 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€1.90 z DDV

38 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6.10 z DDV

39 Wheel cover

Spare Part Wheel cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€8.78 z DDV

40 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€5.51 z DDV

41 Knob kit

Spare Part Knob kit Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€16.77 z DDV

42 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€10.78 z DDV

43 Female thread

Spare Part Female thread Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13.86 z DDV

44 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6.83 z DDV

45 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13.32 z DDV

46 Wheel

Spare Part Wheel Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€61.11 z DDV

47 Front axle

Spare Part Front axle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€118.94 z DDV

48 Bushing

Spare Part Bushing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6.34 z DDV

49 Cover

Spare Part Cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€29.45 z DDV

50 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4.25 z DDV

51 Hub with sheet

Spare Part Hub with sheet Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€22.44 z DDV

52 Support

Spare Part Support Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€12.78 z DDV

53 Cover

Spare Part Cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€30.64 z DDV

54 Hub with sheet

Spare Part Hub with sheet Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€22.44 z DDV

55 Bushing

Spare Part Bushing Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€9.27 z DDV

56 Snap ring

Spare Part Snap ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€2.24 z DDV

57 Left sprocket

Spare Part Left sprocket Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€26.20 z DDV

58 Wheel cover

Spare Part Wheel cover Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€20.70 z DDV

59 Belt 10X530 BT5-038-04/07

Spare Part Belt 10X530 BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€29.32 z DDV

60 Pulley BT5-038-04/07

Spare Part Pulley BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€19.10 z DDV

61 Plug BT5-038-04/07

Spare Part Plug BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€4.93 z DDV

62 Right sprocket

Spare Part Right sprocket Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€26.20 z DDV

63 Spring BT5-038-04/07

Spare Part Spring BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€13.62 z DDV

64 Roller

Spare Part Roller Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€3.61 z DDV

65 Transmission BT5-038-04/07

Spare Part Transmission BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€241.86 z DDV

66 Traction lever

Spare Part Traction lever Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€26.18 z DDV

67 Traction cable BT5-038-04/07

Spare Part Traction cable BT5-038-04/07 Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€27.85 z DDV

68 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€6.10 z DDV

69 Support

Spare Part Support Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€16.53 z DDV

70 Handle

Spare Part Handle Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€11.91 z DDV

71 Dashboard

Spare Part Dashboard Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€33.62 z DDV

72 Ring

Spare Part Ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€4.93 z DDV

73 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 4
€0.54 z DDV

74 Key

Spare Part Key Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€3.71 z DDV

75 Spacer

Spare Part Spacer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 8
€2.93 z DDV

76 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€6.10 z DDV

78 Guard kit

Spare Part Guard kit Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€24.73 z DDV

80 Lever

Spare Part Lever Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€14.25 z DDV

81 Clamp

Spare Part Clamp Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€8.10 z DDV

82 Cable

Spare Part Cable Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€28.70 z DDV

83 Variator

Spare Part Variator Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€176.18 z DDV

84 Snap ring

Spare Part Snap ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€0.59 z DDV

85 Washer

Spare Part Washer Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€0.78 z DDV

86 Screw

Spare Part Screw Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€2.10 z DDV

87 Ring

Spare Part Ring Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 2
€5.51 z DDV

88 Lever

Spare Part Lever Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€27.46 z DDV

89 Hub

Spare Part Hub Illustrated parts list (From June 2007) Mowers Brand Oleo-Mac Required Quantity: 1
€11.91 z DDV
